![Ascendo Speakers](https://soundinnovators.in/wp-content/uploads/2024/06/Ascendo-Speakers-.webp)
Ascendo Speakers
Mr. Norbert Heinz, Mr. Stefan Kopf and Mr. Jurgen Scheuring founded ASCENDO in Stuttgart Germany in 1999. For over two decades, ASCENDO has been manufacturing high-end speakers that deliver the best surround sound audio that many audio enthusiasts admire. ASCENDO high-end speakers can reproduce the smallest detail in audio, and they are handcrafted using the best components and materials with the utmost precision by optimally trained specialists in Germany. Music connoisseurs all over the world love the perfection of ASCENDO´s speaker masterpieces. With just the same scrupulousness and uncompromising commitment to the very best, ASCENDO IMMERSIVE AUDIO manufactures its home theater speakers.
ASCENDO Brand Overview
If you want to design the ultimate dedicated Home Theatre with surround sound decoding of Dolby Atmos, Auro-3D, and DTS:X Pro, which gives better performance than an actual cinema hall and does not restrict budget, then ASCENDO should be your first choice.
Innovation in audio technology

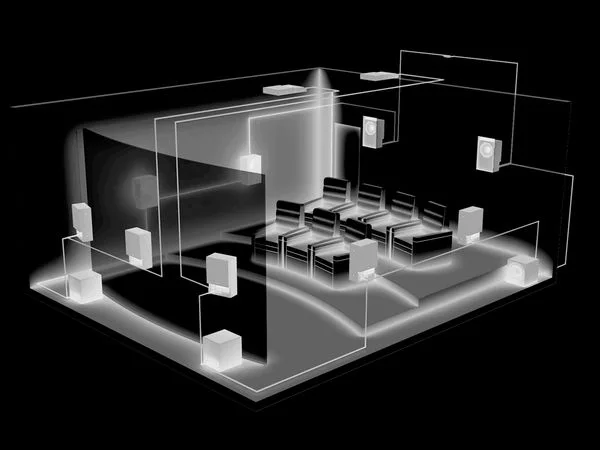

AIA ASCENDO Speakers Management
Normally, in a high-end dedicated home theater system, all speakers connected to power amplifiers via long wires suffer from some kind of power loss and reduced performance. Add-on passive crossovers inside the speakers also lose some power.
![AIA Speakers Management](https://soundinnovators.in/wp-content/uploads/2024/06/AIA-Speakers-Management.webp)
Powered ASCENDO speakers overcome these issues by integrating optimized amplifiers directly within the speaker. A digital crossover splits the audio signal into divided frequencies, which are sent to amplifiers connected by short, high-quality cables to every speaker. This setup reduces power loss, improves control, and increases frequency response. Also, advanced protection circuitry ensures the lifespan and performance of each driver and amplifier channel. Powered speakers provide superior performance and efficiency compared to passive designs.
The AIA speaker management software enables centralized control, management, and monitoring of complex audio installations. With AIA Creator speaker management software, all powered speakers, subwoofers, and external amplifier modules connect into a unified system, managing both master and group functions and millions of individual parameters in real time. This system supports configurations from single speakers to extensive immersive home theaters and networked audio over IP systems.
Each ASCENDO speakers includes powerful internal audio processing and multiple preset memory functions for room correction and speaker alignment. Key features include level and gain adjustment, delay time, matrix routing, bass management, and speaker group voicing with different user access levels. Standard settings like X-curve calibrations and specific loudness curves can also be stored. Additionally, AVB streams can be split to enhance surround channels with different time alignments, switch between formats like Dolby Atmos, DTSX Pro, or Auro-3D, and easily adjust setups for various listening positions.
Coaxial ASCENDO Speakers Construction
![Coaxial Speakers Construction](https://soundinnovators.in/wp-content/uploads/2024/06/Coaxial-Speakers-Construction-1024x368.webp)

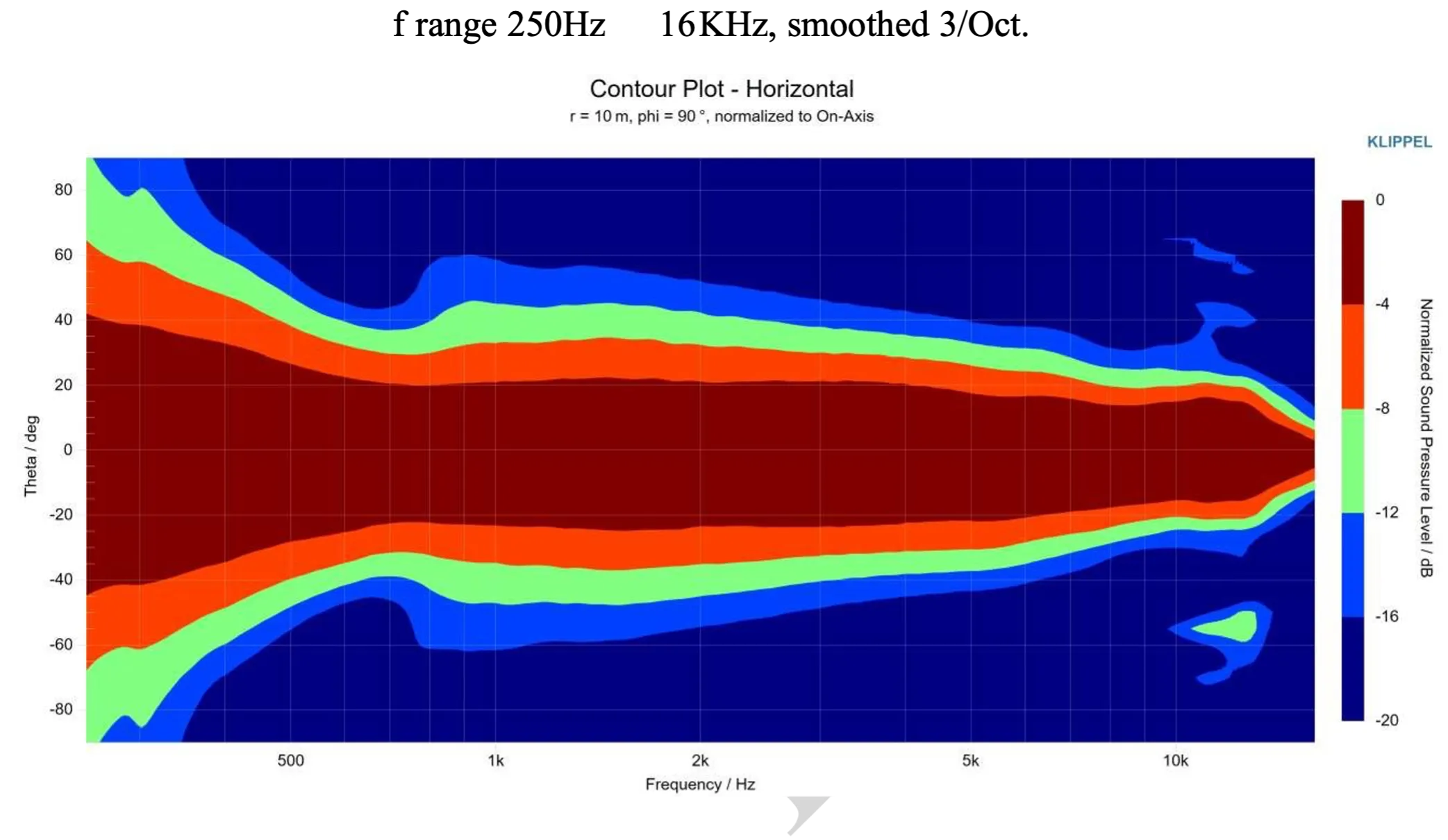

Coaxial speaker designs provide a single-point source and ensure a consistent acoustic center and balanced dispersion pattern. This accompanies homogeneous sound reproduction with perfect transient response and high intelligibility. Conventional non-coaxial multi-way speakers experience inconsistent sound due to varying distances between the listener and speaker, and audible crossover points. These issues are noticeable in theater with more comprehensive listener arrays.
Coaxial speaker design, with drivers on a similar axis, solves these issues. It offers a balanced response on both vertical and horizontal axes at every angle, ensuring excellent crossover transitions and mirrored behavior about the axis. Non-coaxial speaker design cannot achieve this equilibrium.
Infrasonic Subwoofers
![Infrasonic Subwoofers](https://soundinnovators.in/wp-content/uploads/2024/06/Infrasonic-Subwoofers-1024x731.webp)

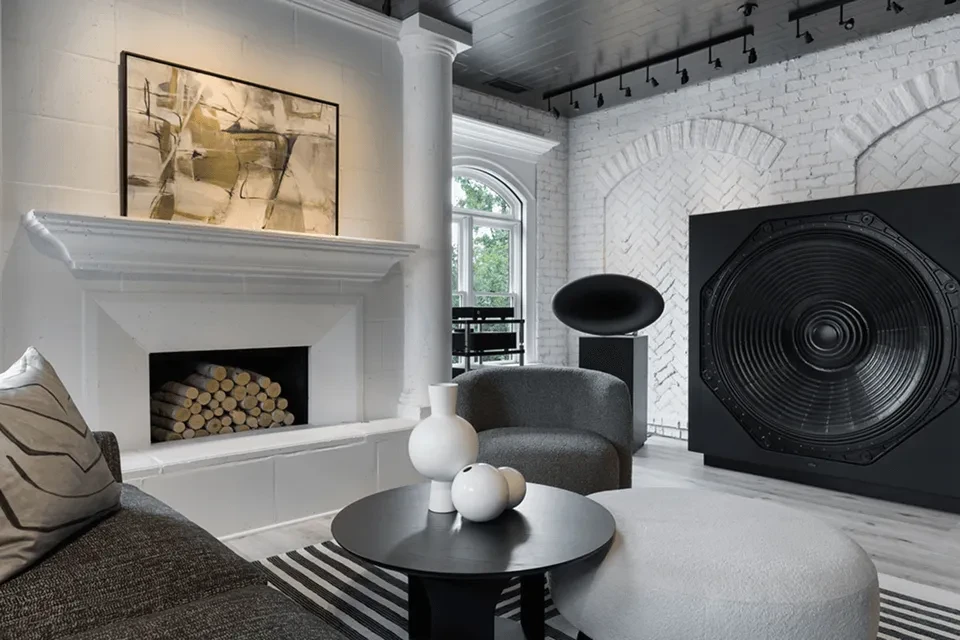

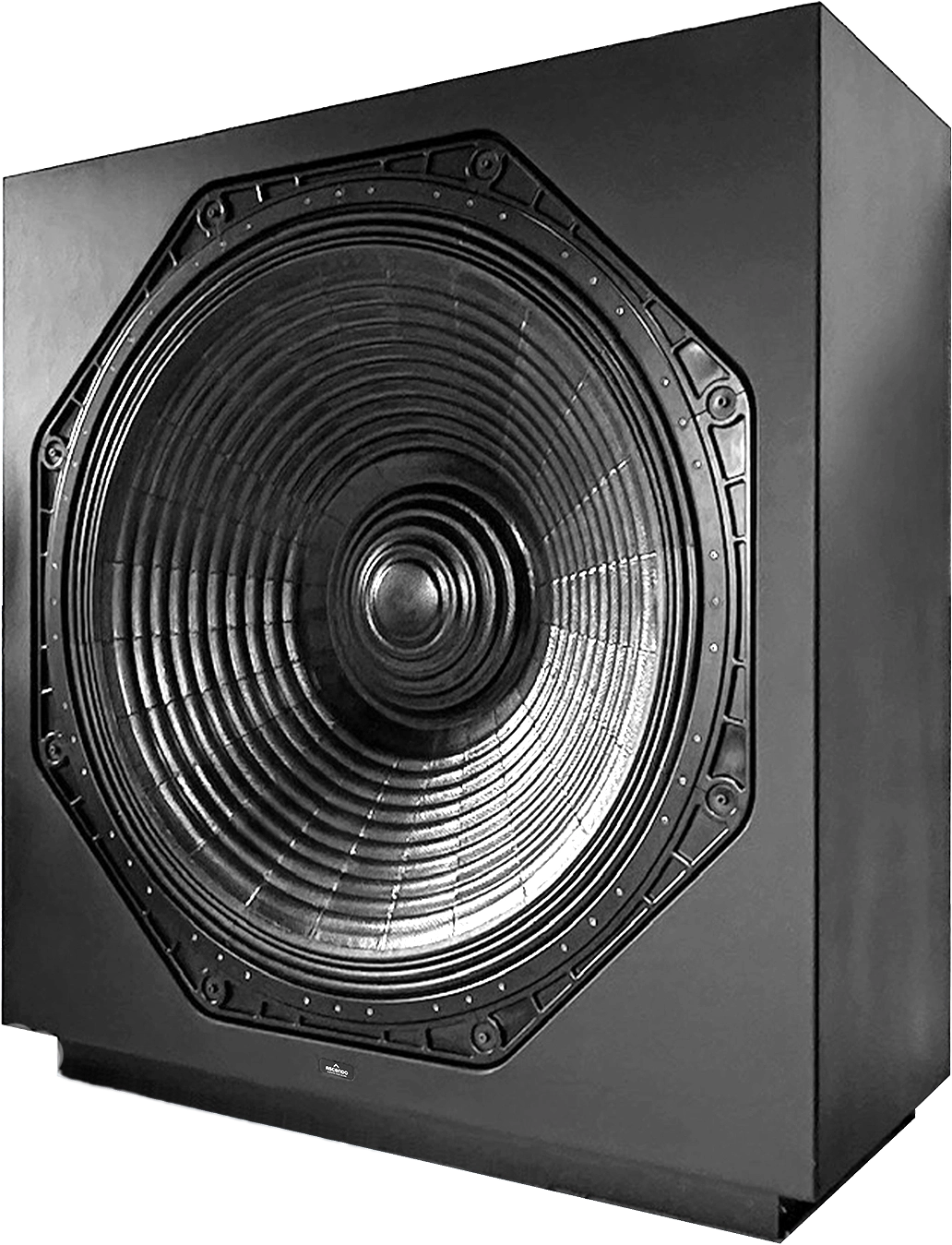

The ASCENDO infrasonic subwoofers are the greatest advancement for luxury high-end home theaters. They deliver precise and powerful infrasonic low frequencies, creating an immersive experience with deep bass that is felt as well as heard.
Infrasonic bass is key for high-performance, in delicate home theaters, pressuring the room and enhancing the physical impact intended by many Hollywood action movies and Bollywood soundtracks. True infrasonic subwoofers are extremely hard to engineer and work in tandem with other subwoofers in the home theater to do their part, extending bass into the single Hz digits. Proper calibration of timing, phase, and level with all home theater channels ensures that ASCENDO infrasonic subwoofers provide an unforgettable, fully immersive audio experience.
ASCENDO Infrasonic Passive Subwoofers Models
![ASCENDO The24 SUB PRO-PASSIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The24-SUB-PRO-PASSIVE-SEALED-576x1024.webp)
ASCENDO The24 SUB PRO-PASSIVE SEALED
![ASCENDO The32 SUB PRO-PASSIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The32-SUB-PRO-PASSIVE-SEALED-576x1024.webp)
ASCENDO The32 SUB PRO-PASSIVE SEALED
![ASCENDO The50 SUB PRO-PASSIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The50-SUB-PRO-PASSIVE-SEALED-931x1024.webp)
ASCENDO The50 SUB PRO-PASSIVE SEALED
![ASCENDO The80 SUB PRO-PASSIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The50-SUB-PRO-PASSIVE-SEALED-1.webp)
ASCENDO The80 SUB PRO-PASSIVE SEALED
ASCENDO Infrasonic Active Subwoofers Models
![ASCENDO The24 SUB PROACTIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The24-SUB-PRO-PASSIVE-SEALED-576x1024.webp)
ASCENDO The24 SUB PROACTIVE SEALED
![ASCENDO The32 SUB PROACTIVE SEALED](https://soundinnovators.in/wp-content/uploads/2024/07/ASCENDO-The32-SUB-PRO-PASSIVE-SEALED-576x1024.webp)
ASCENDO The32 SUB PROACTIVE SEALED
Commitment to superior sound quality
ASCENDO is dedicated to delivering unparalleled sound quality in its speakers, subwoofers, and amplifiers for luxury high-end home theaters through meticulous engineering, innovative design, and advanced technologies such as coaxial designs speakers, digital electronic crossovers and infrasonic active & passive subwoofers ASCENDO ensures a seamless, immersive surround sound experience.
Each product is handcrafted to deliver exceptional audio performance, making sure that listeners experience every detail in the movie with either crystal vocal or background detailed surround sound. ASCENDO’s relentless pursuit of excellence guarantees that every user enjoys the highest level of audio performance, making their dedicated home theater experience truly exceptional.
Made in Germany
Germans are known for precision and highly value punctuality. ASCENDO, a German company, maintains high-quality standards with its AIA brands, assimilating the sustainable ‘Made In Germany’ philosophy. All speakers are handcrafted in small batches for special customization requests in size, shape, and color in Ansbach, Germany. The lacquer finishes of the enclosures adhere to strict environmental regulations, using paints with the lowest environmental impact and carbon footprint. Also, for a long product life cycle with high serviceability, ensuring products remain reliable and maintainable for years, all AIA components are sourced from Europe and Germany. They are providing the best quality through short supply chains.
Product Categories
Subwoofers
ASCENDO subwoofer offers the lowest distortion bass to reproduce the finest details with the highest dynamic range to meet the content transients without compression. The sophisticated ASCENDO Speaker Management technology empowers the class-leading transient response of the ASCENDO high-performance drivers. The extremely precise impulse response of the Subwoofer Drivers enables immediate and exact conversion of electrical signals into sound. The result of this combined technology is that the acoustic experience becomes real and emotionally evolving.
ASCENDO Passive Subwoofers
ASCENDO Active Subwoofers
ASCENDO Speakers
The ASCENDO Speaker Management technology empowers the class-leading transient response of the ASCENDO high-performance drivers. The exact impulse response of the Coaxial drivers enables immediate and exact conversion of electrical signals into sound. The result of this combined technology is that the acoustic experience becomes real and emotionally evolving. All performance data of ASCENDO speakers have been determined by an independent professional test laboratory using state-of-the-art measurement technology.
ASCENDO Passive Monitors
ASCENDO Beryllium Passive Monitors
ASCENDO Active Monitors
ASCENDO Beryllium Active Monitors
Popular Ascendo Speakers Products
ASCENDO The15 Be PRO PASSIVE ON WALL Beryllium Passive Monitors Speaker
![ASCENDO The15 Be PRO PASSIVE ON WALL Beryllium Passive Monitors Speaker](https://soundinnovators.in/wp-content/uploads/2024/06/ASCENDO-The15-Be-PRO-PASSIVE-ON-WALL-Beryllium-Passive-Monitors-Speaker.webp)
The ASCENDO The15 Be PRO PASSIVE ON WALL is an extremely impressive and extraordinary performing custom home speaker for Movies and Music. This 15″ point source axisymmetric speaker has been designed as a behind-screen speaker for large delicate home theaters. Front left, center, and Front right speakers can also be used as surround speakers.
ASCENDO’s passive crossover technology, paired with the highest grade flat wound OFC copper air core coils and silver capacitors, works in combination with the enclosure and coaxial driver design to deliver ultra-precise and swift impulse response. The 15 Be PRO PASSIVE is capable of incredible SPL levels, but also the more impressive dynamic contrasts from whispering dialogues to explosive effects, which reproduces every possible dynamic range with ease. Even the most complex film passages with extreme dynamic requirements are reproduced at the highest clarity and lowest distortion.
Beryllium is one of the most expensive materials used to make ASCENDO The15 PRO PASSIVE ON WALL speaker diaphragms; in terms of stiffness-to-weight ratio, Beryllium is the highest of any known metal and can deliver dramatically superior results when adequately incorporated into a speaker design. The speed of sound through Beryllium is nearly 2.5 times faster than the speed of sound through aluminum or titanium. This means the first breakup will occur at a much higher frequency, well outside the audible range. Breakup occurs when the cone partially vibrates at specific audible frequencies and, therefore, isn’t entirely piston throughout its range. This leads to non-linearities in the amplitude response as well as stored energy in the time domain.
ASCENDO The15 Be PRO PASSIVE ON WALL Beryllium Passive Monitors Speaker Specification
Speaker type | Time-coherent 15″ beryllium Point-Source Vented Passive Speaker |
Tweeter | 1.4″ (Throat) beryllium compression driver |
Woofer | 15” driver |
Enclosure | Internally braced birch ply and MDF. |
SPL | – 127dB cont. / 130 dB peak (Calculated data) |
Frequency range | 75 Hz – 21 kHz (Calculated data) |
Power Handling | 900 watts into 8 Ω |
Input Terminal | Neutrik Speakon |
Weight | 32.5 Kg |
Finish | Structural paint black (Custom color options available) |
ASCENDO The12 PRO PASSIVE WEDGE Surround and Atmos Speaker
![ASCENDO The12 PRO PASSIVE WEDGE Surround and Atmos Speaker](https://soundinnovators.in/wp-content/uploads/2024/06/ASCENDO-The12-PRO-PASSIVE-WEDGE-Surround-and-Atmos-Speaker.webp)
The ASCENDO The12 PRO PASSIVE surround speaker can be installed in multiple locations where angling the speakers is mandatory. Such places include Surround, Surround Back, front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds, etc. The driver design is perfect for wide-angle axisymmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D custom home theater builds according to current CEDIA, Dolby, and DTS specs. The 12 PRO PASSIVE WEDGE is a very flexible speaker mounting and orientation option that ensures the best possible localization, immersion, and tonal balance at the primary listening position while minimizing localization shifts for side seats.
ASCENDO The12 PRO PASSIVE WEDGE is a highly dynamic and powerful surround speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
ASCENDO The12 PRO PASSIVE WEDGE Surround and Atmos Speaker Specification
Speaker type | Time-coherent 12″ Point-Source Vented Passive Speaker |
Tweeter | 1.4″ (Throat) beryllium compression driver |
Woofer | 12” driver |
Enclosure | Internally braced birch ply. |
Cont./peak output | 126 dB cont. / 129 dB peak |
Frequency range | 75 Hz – 21 kHz |
Power Handling | 900 watts into 8 Ω |
Input Terminal | Neutrik Speakon |
Weight | 23 Kg |
Finish | Structural paint black (Custom color options available) |
ASCENDO The32 SUB PROACTIVE SEALED Infrasonic Active Subwoofer
![ASCENDO The32 SUB PROACTIVE SEALED Infrasonic Active Subwoofer](https://soundinnovators.in/wp-content/uploads/2024/06/ASCENDO-The32-SUB-PROACTIVE-SEALED-Infrasonic-Active-Subwoofer.webp)
The ASCENDO The32 SUB PRO PASSIVE SEALED infrasonic active subwoofer features a 32″ custom-built subwoofer with 90 mm of linear travel, the world record for home theater or even commercial cinema subwoofers. The ASCENDO The32 SUB PRO plays in its own league. Authority and impact, speed, dynamics, and differentiation are all attributes the The32 SUB PRO evolves when playing down to the deepest notes in the single-digit range. This opens a new world in lowest bass reproduction. Any comparison will illustrate the sovereignty of its infrasonic bass capabilities.
ASCENDO The32 SUB PROACTIVE SEALED Infrasonic Active Subwoofer Specification
Subwoofer type | 32″ forward-firing woofer, with dual 6,5″ voice coil, Active Sealed, built-in DSP Amplifier |

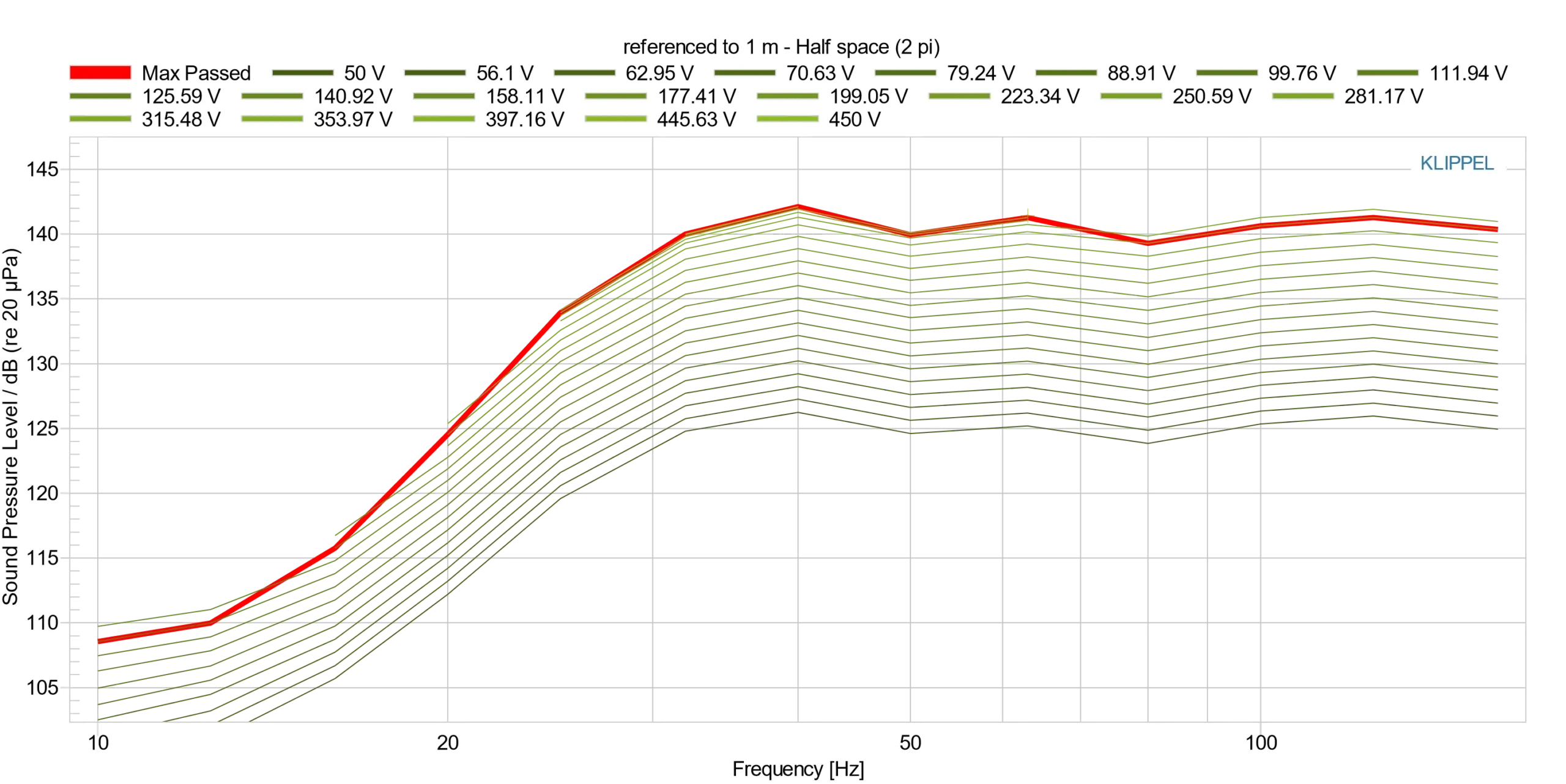

SPL (Peak/half space 2 pi) | Measurement Data 140 dB @32 Hz and up 125 dB @20 Hz 109 dB @10 Hz |
Frequency range | Measurement Data (without DSP) 28 Hz – 500 Hz / -3 dB 20 Hz – 500 Hz / -15 dB” |
Air volume displacement | 16,6 L / in comparison to 18″ standard cinema subwoofer 1,1 L |
Output power | 6.000 Watts |
Damping factor | > 400 (20-500 Hz @8Ω) |
Analog Input Amplifier | 1 x XLR balanced |
Power connector | Neutrik powerCON True 1 in-out |
Controlling | OCS software control |
Weight | 160 Kg |
Finish | Structural paint black. |
Use Cases and Applications of Ascendo Speakers

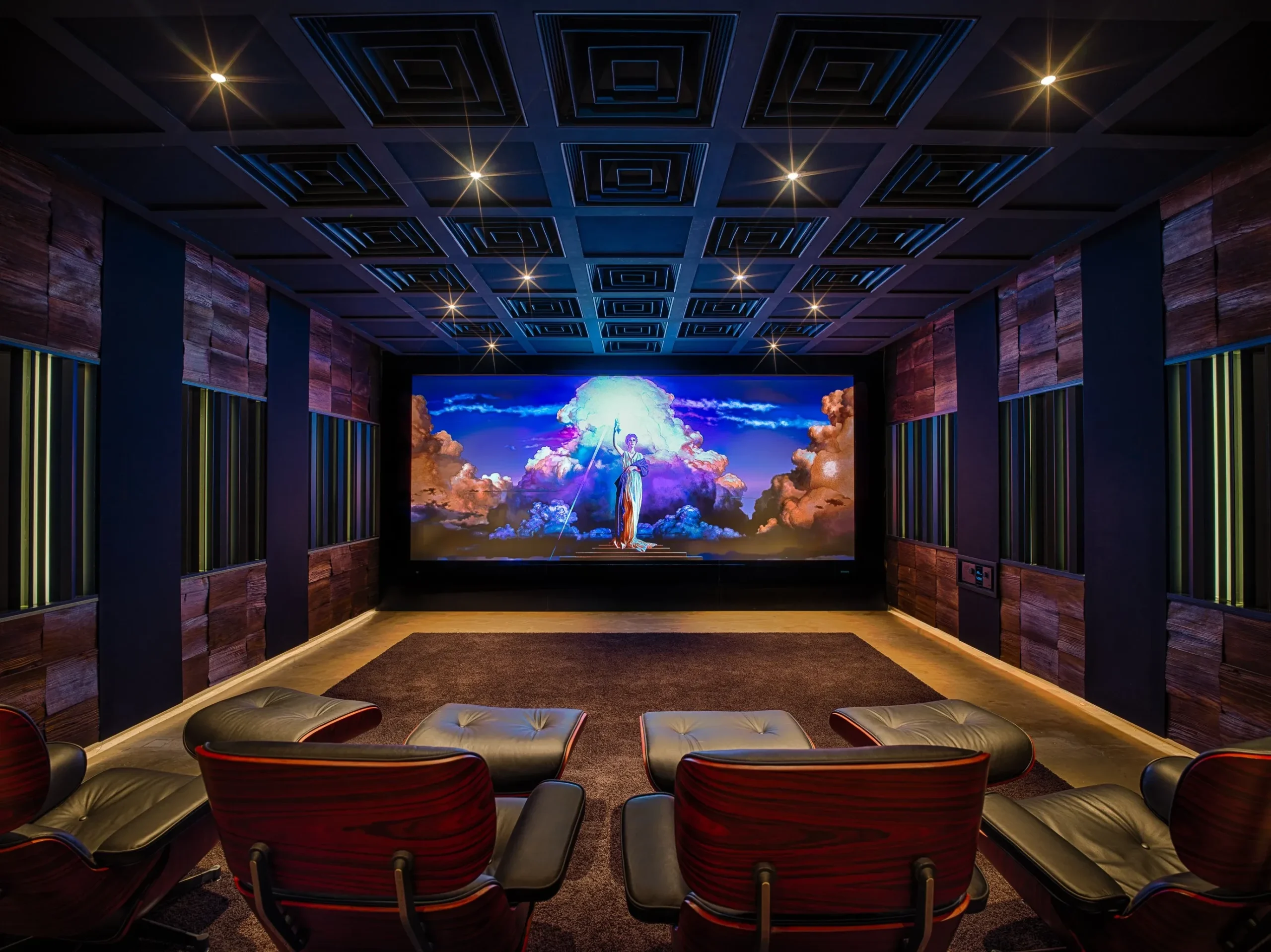

ASCENDO has a range of very high-efficiency, high-power, and high-performance custom installation speakers and subwoofers for High-end luxuries and delicate home theater. The ASCENDO home theater system reproduces not only lifelike audio in music but breathtaking surround sound in movies.
Why Choose Ascendo Speakers
As we said before, Germans are known for precision and highly value punctuality. ASCENDO works on every small detail when it comes to speaker design. They use the most advanced technologies in their speakers and subwoofers, like beryllium compression driver, Coaxial speaker construction, and Infrasonic Passive Subwoofers. Also, no brand in the audio industry gives detailed Calculated specifications like ASCENDO, which helps users calculate and construct their High-end custom home theater system.
Contact and Consultation for Ascendo Speakers
ASCENDO is the most high-end speaker brand for custom home theater or dedicated home theater. These speakers required a high-powered power amplifier and precise Audio Video processor, which came with a hefty price tag. Also, when designing such high-end home theater, you should take the help of audio-visual consultants who are CEDIA (Custom Electronics Design & Installation Association) Members. If you want to design the ultimate home theater setup with an ASCENDO speaker, contact Sound Innovator. Our expert team will help you to create your dream Home Theater.
