Surat Gujarat Luxury Living Room HiFi and 7.2.4 Dolby Atmos Media Room
Surat, Gujarat
The Client’s Vision
This Surat, Gujarat project was designed for a family that wanted two very different entertainment experiences under one residence: a powerful living room audio system for hosting large family gatherings, and a dedicated media room that could deliver true cinema-like Dolby Atmos performance. The living room needed to fill a very large 25 x 40 feet space with clarity, control, and strong bass, but without disturbing the interior design. The media room, on the other hand, had to offer immersive surround sound for a 5-seater setup with proper projection and acoustic treatment.
Sound Innovators approached the project with a clear focus on performance and lifestyle. In the living room, the challenge was to create a powerful floor-standing stereo system that could handle music, vocals, and bass with ease while respecting the interior designer’s instruction that all speakers must remain on the floor. In the media room, we built a carefully engineered 7.2.4 Dolby Atmos cinema with Triad speakers, JL Audio subwoofers, Yamaha electronics, and acoustic treatment to make the room perform like a true private theatre. The final result was a residence that balanced social entertainment, music enjoyment, and cinematic immersion beautifully.
Living Room Stereo
Living Room Stereo — Large Space High-Fidelity Audio

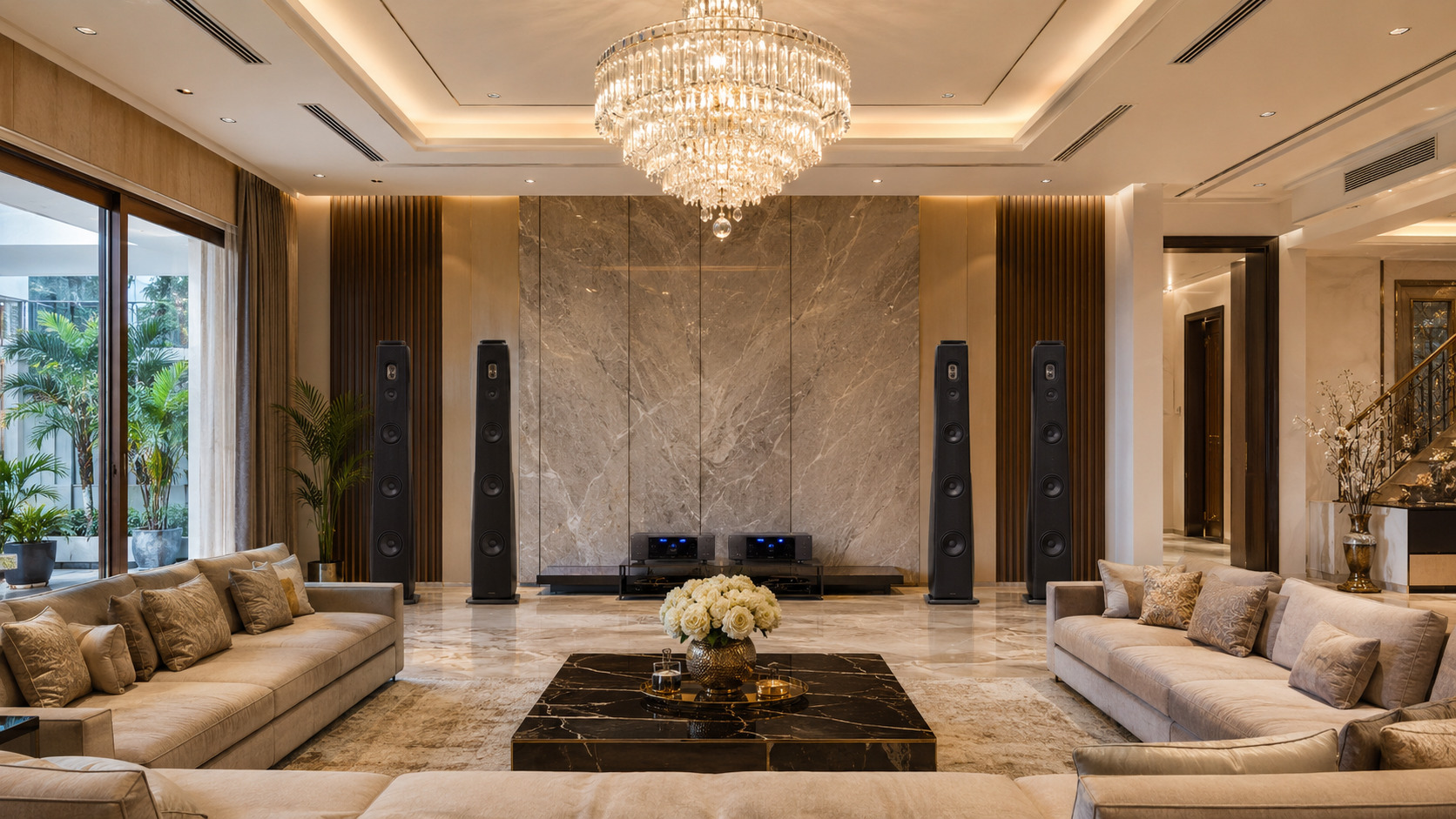

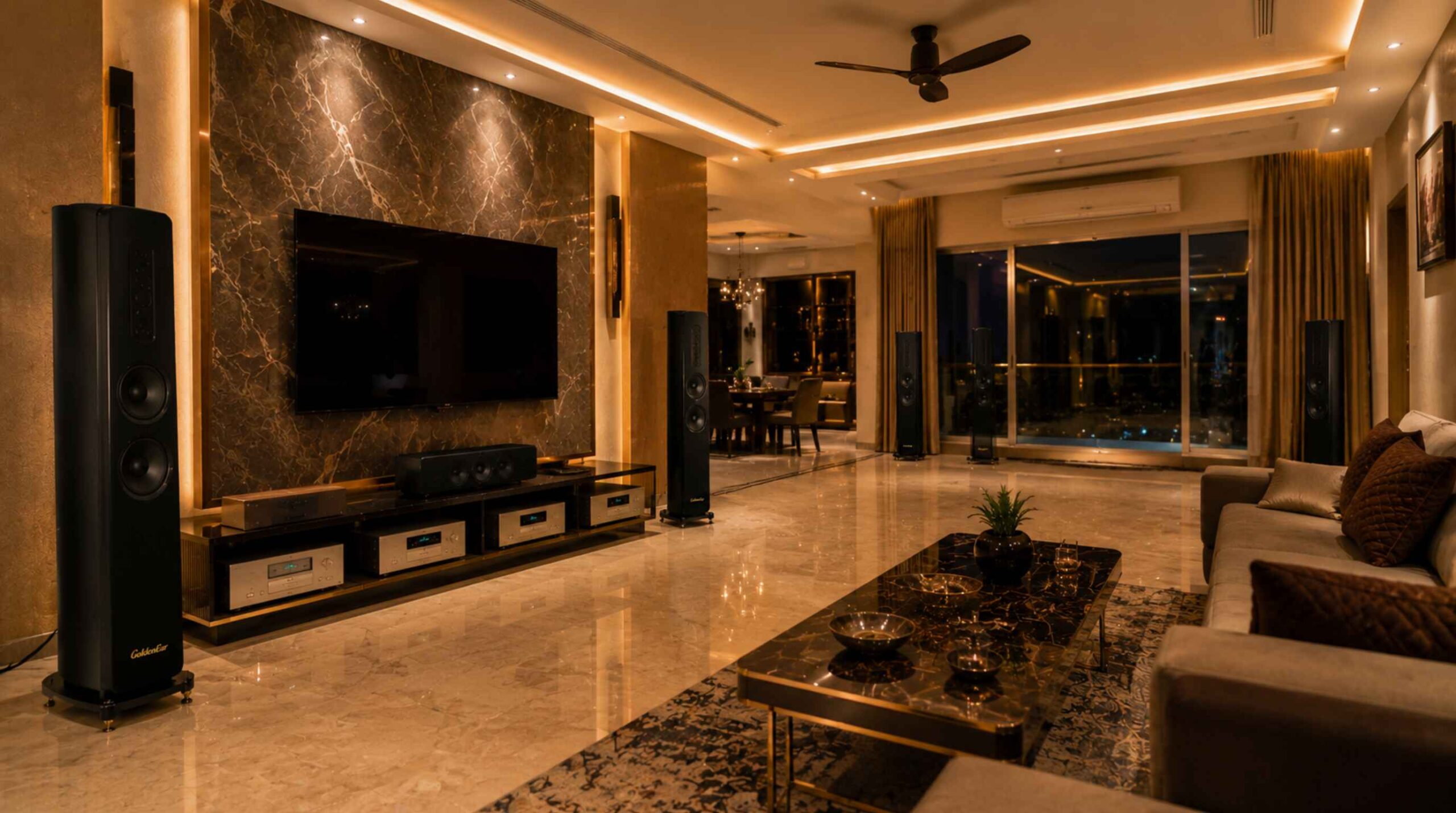

The living room in this Surat residence was a very large open area measuring 25 x 40 feet, so the audio system had to be powerful enough to energize the space during family gatherings while still maintaining refinement for music listening. Since the interior designer insisted that all speakers remain on the floor, we selected a floor-standing solution that could deliver both scale and elegance without wall mounting or visual clutter. The goal was not just volume, but proper musical authority, clean vocals, and controlled bass that could fill the entire room naturally.
Speaker System
The Speaker System — GoldenEar Floorstanding Power

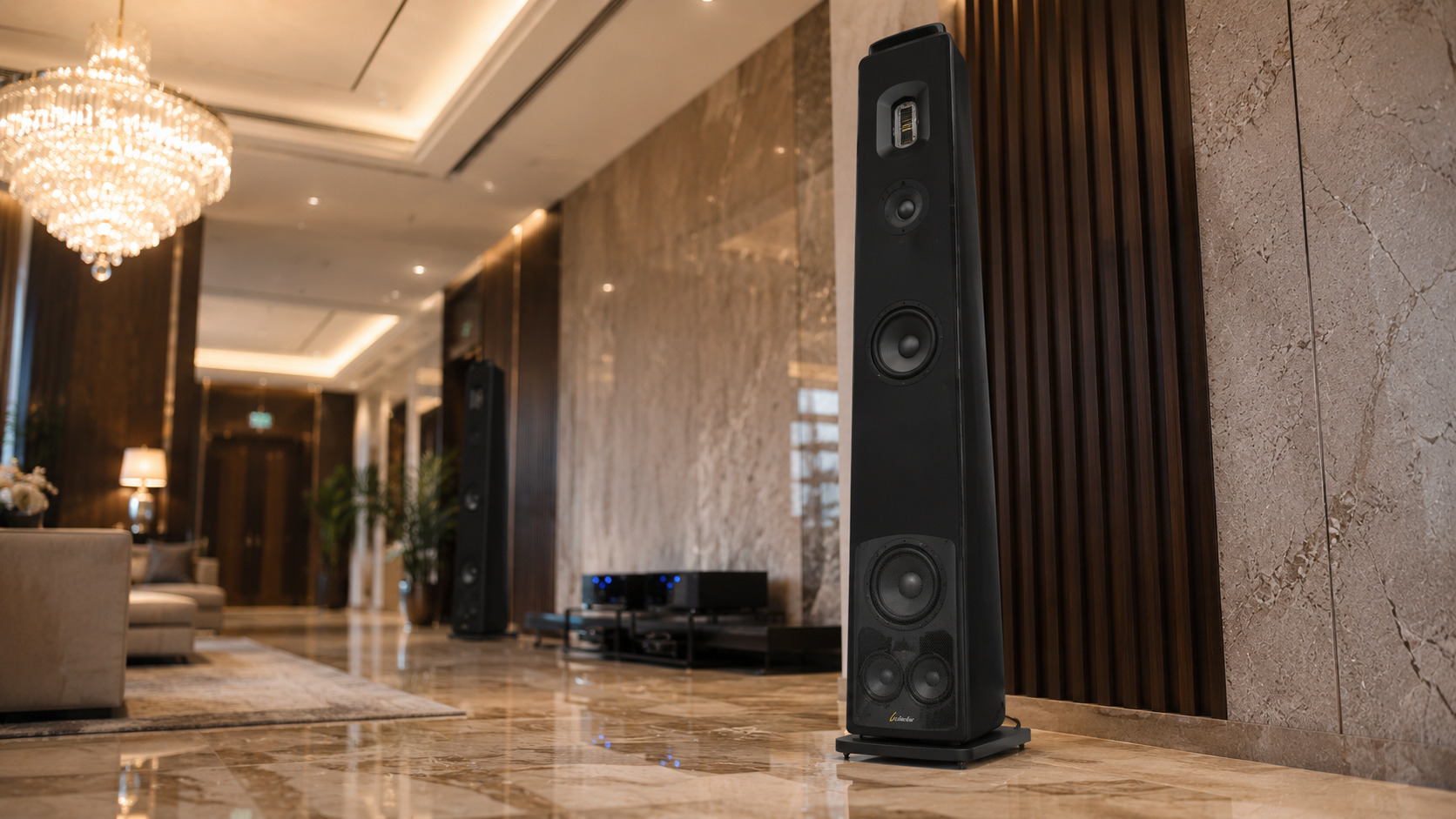

GoldenEar Technology Triton One Floorstanding Speakers
We selected GoldenEar Technology Triton One floor-standing speakers, and this was an excellent choice for the room because each speaker has a built-in 1600W subwoofer section. That meant the system could deliver deep bass, clear midrange detail, and open treble from a single tall floor-standing cabinet, which suited the interior design brief very well. Two pairs were used to ensure the large living room received even sound coverage and strong output across the full seating and gathering area. The Triton One is especially effective in a room like this because it can reproduce vocals, instruments, and low-frequency energy with the kind of control that a big family lounge needs.
Electronics
Electronics — Rotel Power and Precision
Rotel RB-1590 Stereo Power Amplifiers
To drive the speakers properly, we used two Rotel RB-1590 stereo power amplifiers, which are known for delivering serious power with excellent grip and musical control. Their high-current design gave the GoldenEar speakers the authority they needed for both dynamic music playback and fuller sound coverage in a large room.
Rotel RC-1572 Stereo Preamplifier
The Rotel RC-1572 stereo preamplifier was selected as the control center, and an integrated Apple streamer made the system practical for everyday use. Together, the Rotel electronics created a clean, strong, and refined signal path that allowed the living room stereo to perform with confidence.
Living Room · Full Specification
Living Room Specifications at a Glance
| Configuration | High-Fidelity Stereo System |
| Room Size | 25 × 40 feet (1000 sq. ft.) |
| Speakers | GoldenEar Technology Triton One Floorstanding Speakers × 4 USA |
| Amplifiers | Rotel RB-1590 Stereo Power Amplifiers × 2 Japan |
| Preamplifier | Rotel RC-1572 Stereo Preamplifier Japan |
| Equipment Cost | Rs. 18 Lakh |
Media Room

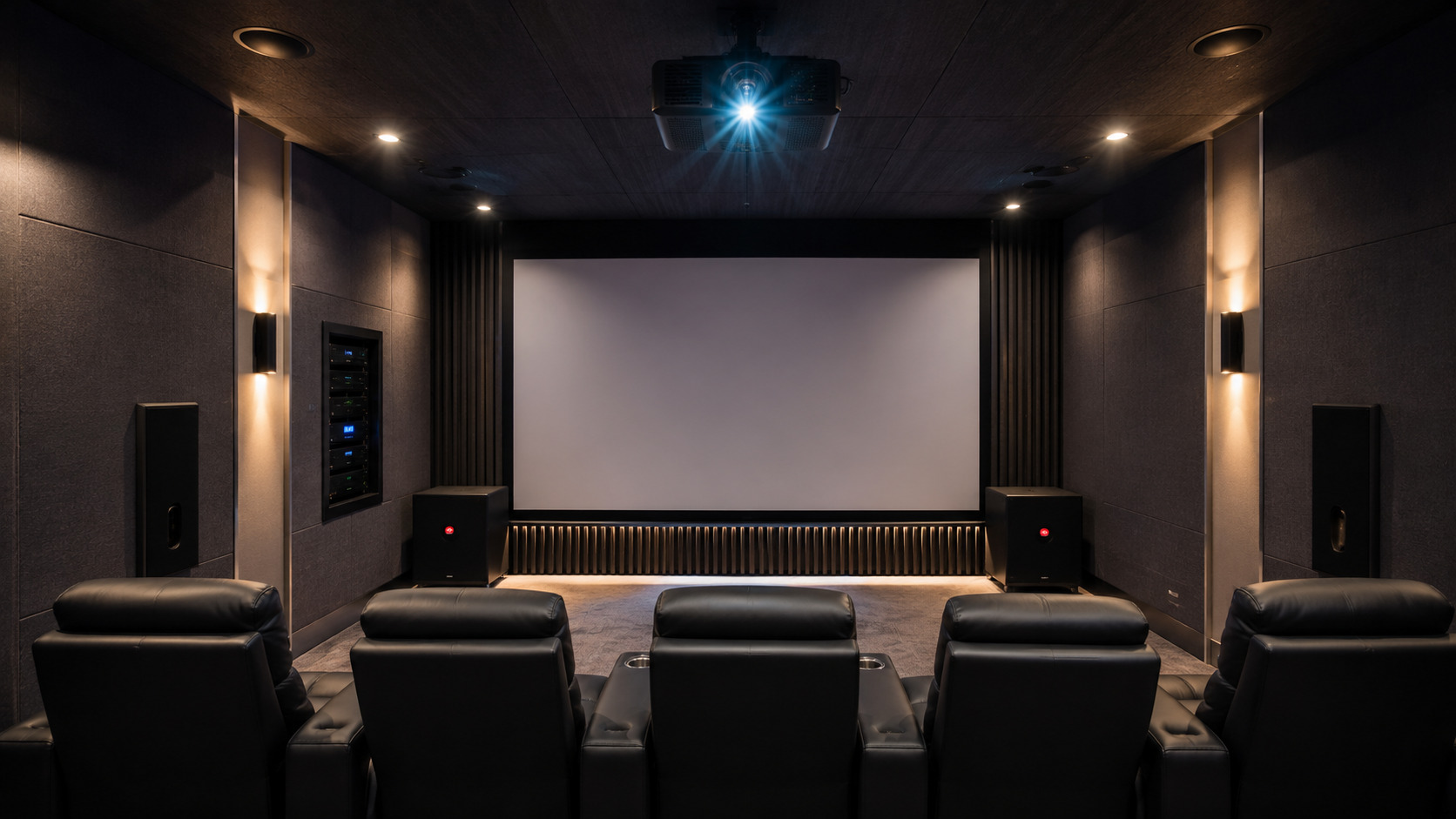

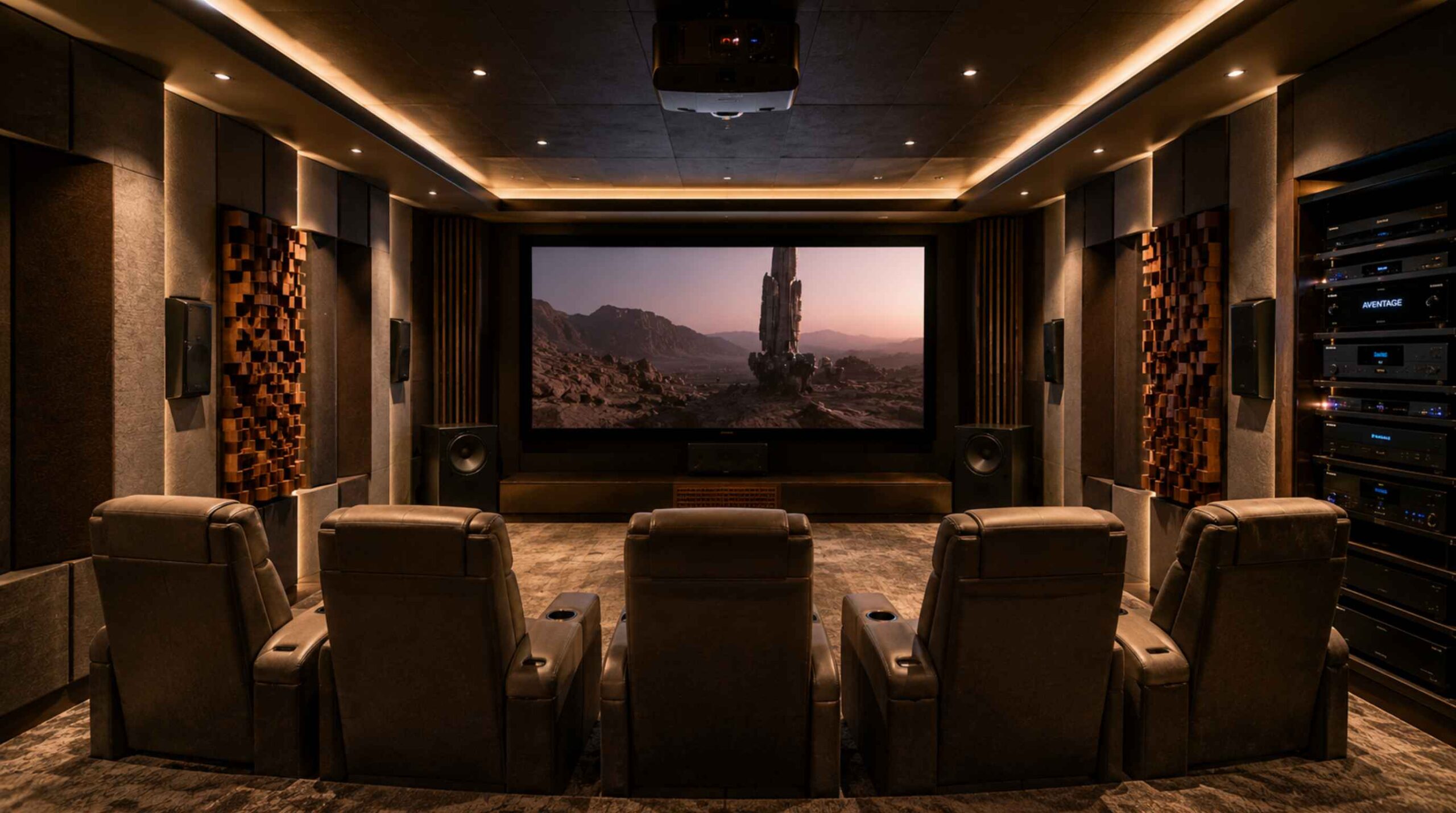

Media Room — 350 sq. ft. 7.2.4 Dolby Atmos Cinema (5-Seater)
The 350 sq. ft. media room was designed as a compact but highly capable private cinema for five seats, where the client wanted surround sound performance that felt immersive and precise. Even though the room size was more controlled than the living room, the requirement for proper theatre imaging, strong bass, and clear dialogue was just as important. We treated the room carefully so that every channel would support the Atmos experience without allowing the sound to become harsh or uncontrolled. Sound Innovators engineered Triad architectural invisibility with JL Audio precision bass, Yamaha processing and power authority, Optoma 4K projection painting Screen Innovations cinema — transforming a modest footprint into a Surat private screening benchmark.
Speaker System
The Speaker System — Triad Architectural Surround Design
Triad InWall Gold/6 Monitor
Triad InWall Gold/6 Monitor speakers handle the left, center, and right channels with 6.5-inch woven-fiberglass woofers and silk-dome tweeters delivering precise dialogue anchoring — Surat family movie nights hear dialogue cut through effects cleanly. The Gold/6’s phase-coherent crossover ensures the front stage locks seamlessly whether tracking orchestral swells or Bollywood action pans; flush in-wall mounting preserves room aesthetics while rigid MDF enclosures survive reference cinema volumes without cabinet coloration.
Triad OnWall Gold Surround
Triad OnWall Gold Surround speakers create surround and surround-back envelopment with dual 5.25-inch drivers radiating controlled dispersion — bullet whiz-bys track flawlessly from front wall to rear seating. Dipole radiation prevents hot-spotting, ensuring all five seats experience uniform 360-degree immersion; Gold series voicing maintains tonal match with the InWall LCR, preserving soundtrack continuity during complex surround motion.
Triad InCeiling Gold/8 Omni SE
Triad InCeiling Gold/8 Omni SE ceiling speakers deliver the Dolby Atmos overhead dimension with 8-inch woofers radiating 360-degree dispersion — spaceship flyovers hover genuinely above the seating plane, rain genuinely cascades through the surround field. SE “Special Edition” drivers employ ferrofluid cooling to survive extended cinema sessions while the Omni radiation pattern eliminates sweet-spot limitations in the compact 350 sq. ft. layout.
JL Audio E-Sub e110
JL Audio E-Sub e110 sealed subwoofers anchor the low-frequency foundation with 10-inch drivers delivering surgical double-bass extension — drum thunder hits with speed rather than boom, LFE impacts pressurize the room uniformly across five seats. Dual E-Subs positioned asymmetrically eliminate room nulls ensuring consistent bass response regardless of seating position, with advanced DSP calibration optimizing phase and group delay to match the Triad mains perfectly.
Projection System
The Projection System
Optoma UHD300X Native 4K DLP Projector
The Optoma UHD300X native 4K DLP projector delivers 3400 lumens punching deep contrast through controlled media room lighting — 4K detail resolves costume textures and backgrounds sharply across the 130-inch screen. PureMotion motion processing eliminates judder during fast Bollywood action sequences; vertical lens shift provides installation flexibility optimizing throw for the five-seater geometry without keystone distortion.
Screen Innovations 135″ 16:9 4K Acoustically Transparent Fixed Screen
The Screen Innovations 130-inch 16:9 acoustically transparent fixed-frame screen serves as the cinema foundation, allowing the Triad Gold/6 LCR speakers to sit precisely behind perforations without phase disruption — micro-perforations preserve high-frequency response so in-wall drivers breathe unimpeded, maintaining front-stage coherence. The 1.5-inch velocity factor ensures treble extension survives fabric passage while the tensioned assembly eliminates waves preserving 4K geometry edge-to-edge across the five-seater viewing envelope. The fixed-frame design eliminates motor noise during movie playback, critical for the Surat media room’s controlled acoustic environment.
Electronics & Processing
Electronics & Processing — Yamaha AVENTAGE RX-A3080
Yamaha AVENTAGE RX-A3080
The Yamaha AVENTAGE RX-A3080 9.2-channel processor/amplifier decodes Dolby Atmos and DTS:X with flagship AKM DACs delivering 150W per channel across 9 channels driving the Triad array cleanly. SURROUND:AI analyses scenes in real time, optimizing channel balance dynamically; YPAO R.S.C. (Reflected Sound Control) calibration employs 8-mic positions taming the 350 sq. ft. room modes and ensuring uniform envelopment across all five seats.
Acoustics & Calibration
Acoustics & Calibration — Complete Media Room Optimization
Full acoustic treatment included GIK Tri-Trap corner bass traps eliminating subwoofer modal ringing, 2nd Skin absorption panels scattering first reflections preserving imaging, QRD diffusion maintaining surround coherence — Auralex LENRD traps controlled ceiling flutter optimizing Atmos height response. A 21-point measurement grid ensured less than 2dB frequency variance across all seats, creating a true Surat private cinema benchmark.
Media Room · Full Specification
Media Room Specifications at a Glance
| Configuration | 7.2.4 Dolby Atmos Cinema |
| Room Size | 350 sq. ft. (5 Seater) |
| Front LCR | Triad InWall Gold/6 Monitor × 3 USA |
| Surround / Surround Back | Triad OnWall Gold Surround × 4 USA |
| Atmos Heights | Triad InCeiling Gold/8 Omni SE × 4 USA |
| Subwoofers | JL Audio E-Sub e110 Sealed × 2 USA |
| Processing / Amplification | Yamaha RX-A3080 AVR Japan |
| Projector | Optoma UHD300X Native 4K DLP Taiwan |
| Screen | Screen Innovations 135″ 16:9 4K AT Fixed USA |
| Equipment Cost | Rs. 38 Lakh |
Installation & Calibration
Installation & Calibration Excellence
Sound Innovators dedicated intensive weeks to precision installation and calibration, ensuring the Surat residence performed as an engineered benchmark. GoldenEar Triton One towers required custom floor decoupling optimizing 1000 sq. ft. living room coupling; Triad InWall LCR channel-matching ensured front-stage coherence; Yamaha RX-A3080 executed 16-point YPAO calibration taming the media room; JL Audio E-Subs DSP phase-alignment eliminated 40Hz nulls; Optoma UHD300X lens-shift and iris calibration optimized 135-inch geometry — delivering living room bass pressure serving 50-person gatherings and media room Atmos enveloping five seats uniformly.
Overall Project · Full Specification
Project Specifications at a Glance
| Configuration | Living Room HiFi + 7.2.4 Media Room |
| Completion | December 2019 (11 Months) |
| Living Room | GoldenEar Triton One × 4, Rotel RB-1590 × 2 — Rs. 18 Lakh |
| Media Room | Triad 7.2.4, JL Audio e110 × 2, Yamaha RX-A3080 — Rs. 38 Lakh |
| Total Investment | Rs. 56 Lakh |
Planning a Similar Project?
Planning Surat living room stereo systems filling 25×40-foot spaces with GoldenEar Triton One power or 7.2.4 Dolby Atmos media rooms featuring Triad architectural speakers, JL Audio subs, and complete acoustic treatment for Ahmedabad, Vadodara, Rajkot, or Gujarat luxury homes? Sound Innovators delivers Gujarat HiFi installations and private Dolby Atmos cinemas matching this Rs. 56 lakh benchmark — from massive floor-standing stereo to precision surround calibration. Contact us for your Surat home theater design transforming family gatherings and movie nights into reference entertainment.
